Over the last few weeks, we have seen Windows 10 begin to roll out to computers across the world.  As people have begun to take advantage of the free upgrade offered to them, some of our clients have come to us with a peculiar error that prevented Microsoft Outlook from being able to send email after they completed their Windows 10 upgrade.

Users first notice that no emails they send are getting through, and a small SEND/RECEIVE ERROR is displayed in the bottom right of the screen:

SENDRECEIEVE ERROR

When expanded, this error shows itself in more detail:
Sending reported error (0X800CCC13).  ‘Cannot connect to the network.  Verify your network connection or modem.’

Error

Upon verifying that all the SMTP, username and password settings, were correct, we eventually came across the solution; running a command in order to correct missing or corrupt system files in Windows.  This command is known as the System File Checker, and below I will run through the process involved in invoking the program using a command prompt command:

  1. First of all, we need to open the command prompt.  Right click the Windows button in the bottom left of the screen, and select Command Prompt (Admin).
  2. Enter the following command:

    sfc /scannow

SFC Scnannow

Once completed, you will receive a message confirming that Windows found some corrupt or missing files, and that it has repaired them successfully.

Load up Outlook, and check that your emails are now sending!

If you are still having issues, there is still hope.  Another command that other users have found helped them out is using the NetShell utility from the command prompt, similar to the solution we provided above.

  1. Open the command prompt once more by right clicking the Windows button in the bottom left of the screen, and select Command Prompt (Admin).
  2. Enter the following commands:

    netshwinsock reset

This handy set of commands will reset your network adapter to its default settings, and hopefully get you going again.

Are your emails different on your phone to your work computer? Do you have two different sent items? If you are experiencing this frustration you may still be running POP3 mail.

POP3 works by storing the messages from your inbox on an internet server. When you “pop” the mail out of your inbox it comes down to your PC or device. Most devices nowadays are setup to leave the messages on the server for 7 or 14 days which means you can retrieve the same messages on multiple devices. However, if you read a message on one device it doesn’t update on the other one. You can never sync your sent items in a POP3 setup either.

IMAP is slightly better. It stores your Inbox, sent items and other folders on an internet server and you synchronize the folders when you send/receive. This means you can see your sent items on multiple devices. The problem with IMAP is that it is normally hosted by the people who host your website and you can run out of space fast. The alternative is Exchange Online. This product gives you complete synchronization of all your email folders and contacts, calendars and reminders. It works on apple, android and windows devices and computers and comes with a massive 50gb of storage per mailbox. There are numerous other benefits such as sharing calendars with colleagues.

At $4.40 per mailbox per month there is no reason you need to feel frustrated anymore. If you are look for Exchange Email on the Sunshine Coast then give us a call or email to discuss your upgrade options.

Microsoft has announced that it will be doubling the storage provided to 50GB from the current 25GB provided. Most users probably haven’t reached the ceiling of 25GB yet however it makes what is already a very attractive enterprise-grade email solution even better.

The mailbox size will be automatically implemented so Exchange Online Users will not have to do anything in order to benefit. If you are currently holding your old emails in a local archive PST, it might be a great time to upload all that content into the cloud so it is easily accessible from all your devices.

For more information on Exchange Online, please see our dedicated Exchange Online page. We are reseller for Microsoft Cloud Solutions and experts in converting businesses over to Exchange Online – the best hosted cloud email solution. We have found it makes the world of difference to businesses still running traditional POP or IMAP email services. If your business is still running on POP mail give us a call and find out about the many benefits.

When you try to receive mail that is over 10mb into an Exchange 2010 mailbox, the sender may receive this bounce back error.

#550 5.2.3 RESOLVER.RST.SendSizeLimit.Org; message too large for this organization ##

Your Exchange 2010 server may need a few settings changed if you want to receive mail of this size.

Due to the way Exchange routes emails we found the following settings helpful if you are using a facility such as popcon to download incoming mail.

  1. Organization Configuration ->Hub Tansport.
    Go to Global Settings -> Transport Settings
    Set the Maximum send and receive size to KB values that suit eg. 20480 for 20mb or 51200 for 50mb
    Exchange increase receiv

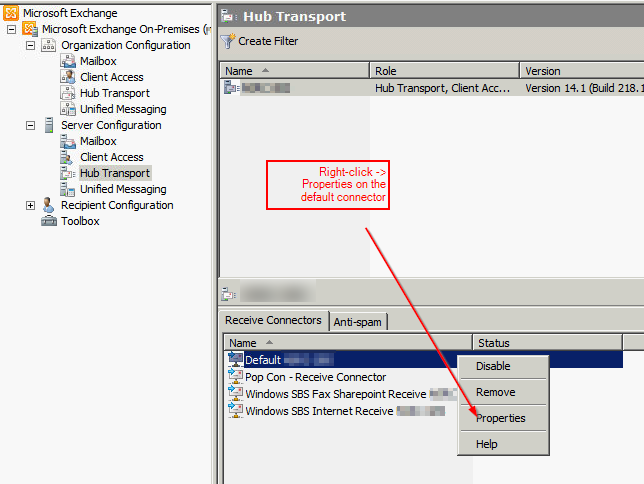

  2. Go to Server Configuration ->Hub Transport
    Go through the receive connectors one-by-one and right-click -> Properties
    Exchange Receive Connector

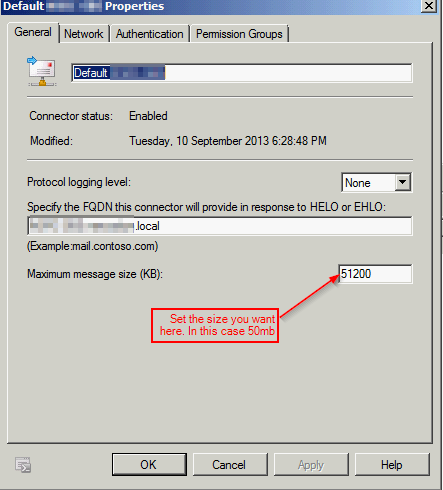

  3. Set the Maximum message size to a size that suits such as 20480 for 20mb and click OK. DO this for all the receive connectors unless you have a special one that you use for a certain purpose and needs to remain lower.
    Exchange Receive Connector

Now the larger messages from outside your organisation should get to their destination mailboxes in your Exchange 2010 Server.





Hosted EmailExchange is a Corporate Email and Communication solution created by Microsoft that offers many benefits over traditional “POP” email accounts.

Contacts, Emails, Calendar and Reminders can all be automatically synced to mobile devices such as phones and tablets. It works perfectly with Microsoft Outlook, as Outlook was designed to work with Exchange in a corporate environment.

Imagine seeing the same email folders on every device wherever you go. Not only your inbox but all the subfolders too. You don’t have to plug your devices in to sync them either. It is all done via push technology through the internet via wi-fi or 3g.  Send an email on your iPad and it will be in your Sent Items in your Outlook back at work.

The solution works with Outlook 2003/2007 and 2010 and almost all popular mobile devices including Android, iPhone and iPad.

Another benefit is that Calendars and Contacts can be shared between people in an organization. For example, a Secretary could take a call at the office and after viewing a Manager’s calendar from their own Outlook, they could enter an appointment into an available time on his/her calendar and have a reminder appear on the Manager’s mobile phone a few minutes later.

A shared contacts folder can also be created for all company contacts. This prevents the need for an extra CRM solution in small businesses. With shared contacts, if a staff member in the company updates a contact with some new details, it updates for everyone.

Until recently exchange solutions were usually reserved for companies that had the resources to install and manage an a on-premises server that runs Microsoft Exchange. For small businesses this would mean installing an SBS 2003, SBS 2008 or SBS 2011 server at the company’s office. The mobile devices then communicate back to the main office through the internet to keep in sync. This is the perfect solution where a file server or database server is also required on-site. Typically OJ Networks installs servers for companies of around 10 users or more. Depending on your company’s needs, you may not need an on-premises server and could consider a hosted exchange solution.

A ‘Hosted’ Exchange Solution simply means that instead of having an email server on your premises to provide this functionality, you host your emails on a Microsoft server on the Internet (cloud). The server doesn’t store files but only the email solution. You get almost all of the benefits of an on-premises solution (except public folders).

OJ Networks are resellers of Hosted Microsoft Exchange Solutions which start at only $7.10 per mailbox per month for 25gb of storage per mailbox. Speak to us today to get a quote for converting your small business over to hosted exchange. Your business will surely benefit from being so in sync.

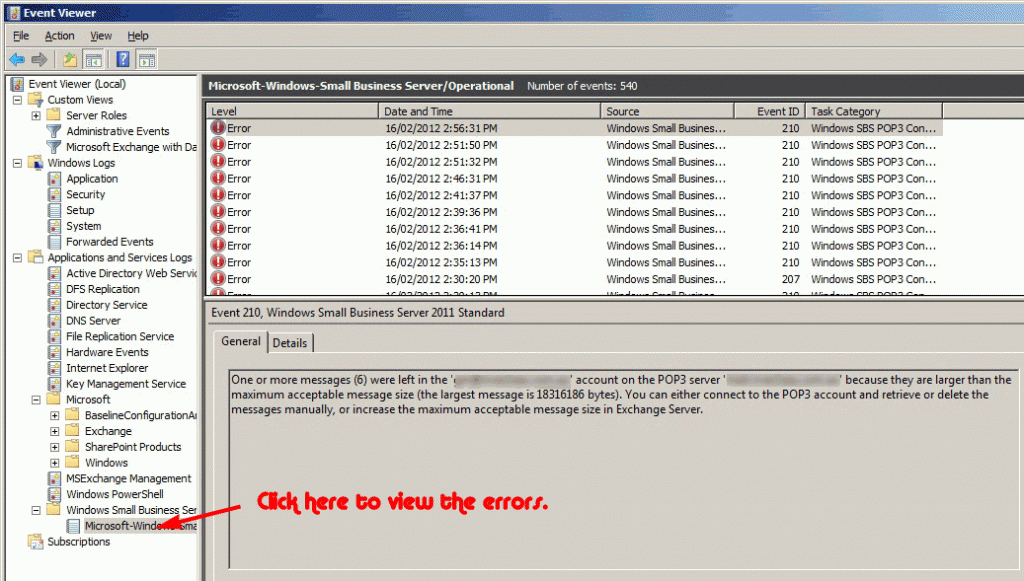

If you are getting EventID 210 on your SBS 2011 server – with a message like…

[message_box title=”Event ID 210″ color=”red”]One or more of the messages (message number) were left in the ‘[accountname]’ account on the POP3 Server ‘[servername]’ because they are larger than the maximum acceptable message size (the largest message is [messagesize] bytes). You can either connect to the POP3 account and retrieve or delete the messages manually, or increase the maximum acceptable message size in Exchange Server.[/message_box]

Event ID 210

Then you can fix it by opening the Exchange Powershell Management Tool…

Exchange Management Tool

And performing these commands which will change the maxmessage size up from the default 10mb to something more realistic (50mb/message).

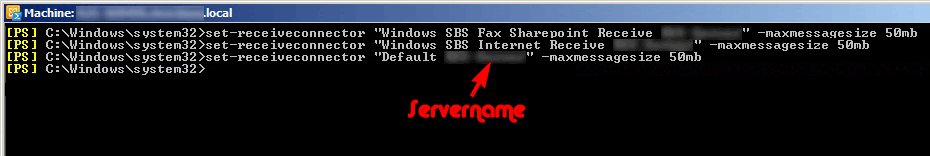

set-receiveconnector “Windows SBS Fax Sharepoint Receive [servername]” -maxmessagesize 50mb

Crazy I know – but you need to change this one too for the change on the Pop3 connector to work!

set-receiveconnector “Windows SBS Internet Receive [servername]” -maxmessagesize 50mb

set-receiveconnector “Default [servername]” -maxmessagesize 50mb

Exchange powershell

After that the messages will happily roll in and the errors will stop. Unless someone decides that a 50mb attachment to your client is achievable…

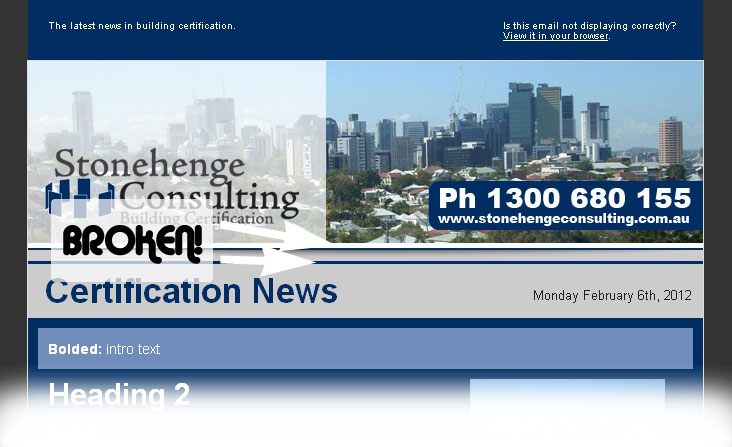

This is an interesting issue where we created a custom template for Stonehenge Consulting – Building Certifiers using the popular Mailchimp newsletter mailing service. Everything looked fine in the Mailchimp preview, however when the test message arrived in my gmail inbox it seemed to have extra padding around certain images in the template.

Extra Padding in Image in Gmail and MailchimpI looked over the code and removed css trying to work out what the issue was. It looked fine in the source code. Then I realised that Mailchimp was exhibiting the same issues as GMail was when Mailchimp was not in preview mode. This would make debugging the issue a lot easier. After uploading several changes I realised that there was an issue with the way GMail was handling images. If an image was alone inside a <TD> table tag, it seemed to get the padding.



I fixed it by creating a new “display:block” css style that would be applied to the offending images causing them to stop padding in Mailchimp, Hotmail and Gmail.

[css]
.fixImage {
display:block;
}[/css]

Then apply it to your images

[html]imageAlt[/html]

Or if you want all images to be display :block then you could use this style. This could break some layouts though

[css]img {
display:block;
}[/css]

Fixed Issue with image paddingBear in mind that if you apply this to images that need to sit next to each other they will be pushed to the next line down.

Now one of the best things about MailChimp is that if you apply a style in the header of your template, Mailchimp will produce a final template with all the styles included in-line too. That means that with mail clients like Gmail that tend to strip the header css out then your template will work just fine.

For the example above, Mailchimp would produce something like this…

[crayon]imageAlt[/crayon]

If you don’t have the time or skills to make your own template remember that OJ Networks can create a custom Mailchimp newsletter template for your business. Contact us today!

Don’t you just love it when a client’s exchange server decides to lockup and then fail to mount when it comes back up. Even better when it happens 1 hour before knockoff time…

Well this one had me stumped for a while. It is quite a large database (for SBS 2003)  edb+stm = around 60Gb

Here are the steps that I looked at to get it working again.

First things first – check in the event logs…

Heaps of

[message_box title=”MSExchangeSA Event ID: 9175″ color=”red”]The MAPI call ‘OpenMsgStore’ failed with the following error: The Microsoft Exchange Server computer is not available. Either there are network problems or the Microsoft Exchange Server computer is down for maintenance. The MAPI provider failed. Microsoft Exchange Server Information Store[/message_box]

and for every user that uses activesync to sync iPads/iPhones etc…

[message_box title=”Server ActiveSync Event ID: 3005″ icon=”alert.png”]Unexpected Exchange mailbox Server error: Server: [server.fqdn] User: [user@fqdn] HTTP status code: [503]. Verify that the Exchange mailbox Server is working correctly. [/message_box]

I tried to Mount the Private store and this error appears…

[message_box title=”MSExchangeIS Event ID: 9518″ icon=”alert.png”]Error Out of memory starting Storage Group /DC=local/DC=dcname/CN=Configuration/CN=Services/CN=Microsoft Exchange/CN=domain/CN=Administrative Groups/CN=first administrative group/CN=Servers/CN=dcname/CN=InformationStore/CN=First Storage Group on the Microsoft Exchange Information Store. Storage Group – Initialization of Jet failed. [/message_box]

I check the consistency of theexchange databases using…

“ESEUTIL /mh priv1.edb”

Dirty Shutdown – OK. There were some un-played log files so I performed a soft recovery which was successful.

An example of this would be “eseutil /r e00 /l [log_path] /d [database_path]”
In this example the logs start with e00. If your logs and database are in different locations you can use the /l  and /d parameters.

Clean Shutdown being reported now – great! Still getting 9518 on attempting to mount store. By this stage I knew I had ShadowProtect Backups of the entire server so I decided to recover the exchange from a short while before it locked up.

I stopped the Information Store service. Moved the existing store to another folder and recovered the entire exchange (which sits on a second drive – not the system drive) folder with .stm, .edb, .chk  and .log files. If your checkpoint (.chk) files are still located on the C:\ drive you may need to recover those too.

Tried to mount store – failed. Removed checkpoint files, replayed log files. Tried to mount store – same Event ID 9518. Back to the drawing board.

Time to try a defrag on the databases.

eseutil /ms “priv1.edb”

eseutil /ms “pub1.edb”

Both successful. Attempt mount again – failed event ID: 9518. OK – something else going on here. I don’t really want to perform a hard recovery if I don’t have to. The databases actually seem to have pretty good integrity.

This server was running exchange 2003 SP2. So I downloaded the Service Pack again and ran it over the existing install. If your server is only running SP1 then probably run that.  It asked for a reboot.

Upon reboot – guess what.  Log files replayed and Stores are mounted!

The Moral of the Story…

Never give up.

Even if you can’t find a solution on Google (which I couldn’t in this case) try to think outside the box.

Remember – There is always Microsoft PSS if you are really stuck.

I had a customer who bought a new laptop – his old system corrected his grammar as he typed a new message, converting lower case ‘i’ to upper case ‘I’ within sentences.

His new system was simply underlining the grammer as incorrect. This should be on by default in Outlook 2007, however if you are experiencing this problem and want Outlook 2007 to correct as you type then have a look at this setting…

Go into Tools Menu, then select Options.

Then click Editor Options

Email Options

Then click Proofing on the left and AutoCorrect Options on the right

Email Options 2

Make sure the checkbox ‘Automatically use suggestions from the spelling checker‘ is checked.

Now you can happily type lower case i and it will autocorrect. Keep in mind that it will also autocorrect any other words it deems incorrect. It always pays to proof your own work before you click the send button.
